Custom Injection Mould Builds

Examples of completed mould structures for customer-specific part requirements.

Open custom injection mould showing the core and cavity

Open Custom Injection Mould

Open mould view showing the manufactured core, cavity and tooling structure.

Open two-cavity custom injection mould

Two-Cavity Custom Injection Mould

Open mould view showing a two-cavity core-and-cavity layout for a customer-specific component.

Completed custom injection mould assemblies

Completed Custom Mould Assemblies

Completed injection mould assemblies shown after tooling manufacture and assembly.

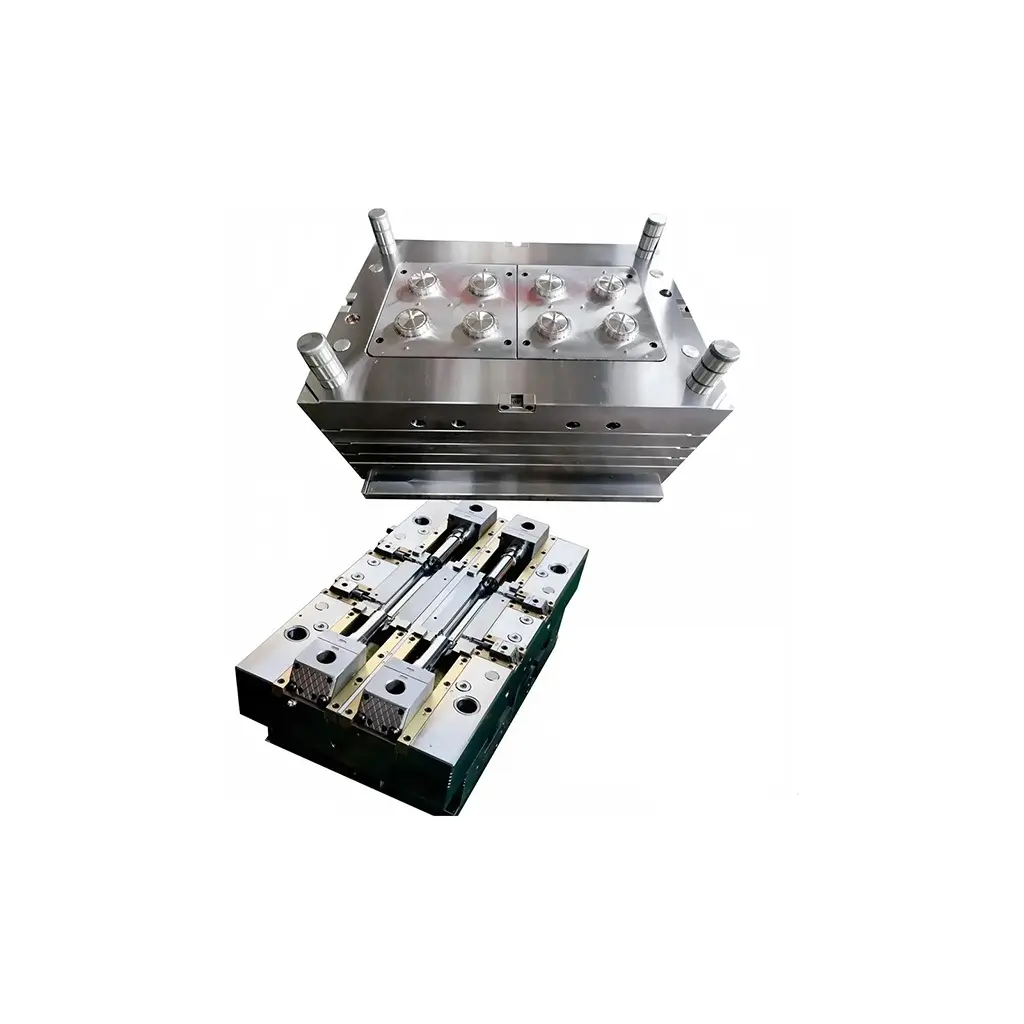

Completed multi-cavity injection mould

Multi-Cavity Injection Mould

Completed multi-cavity mould tooling shown as a manufactured mould assembly.

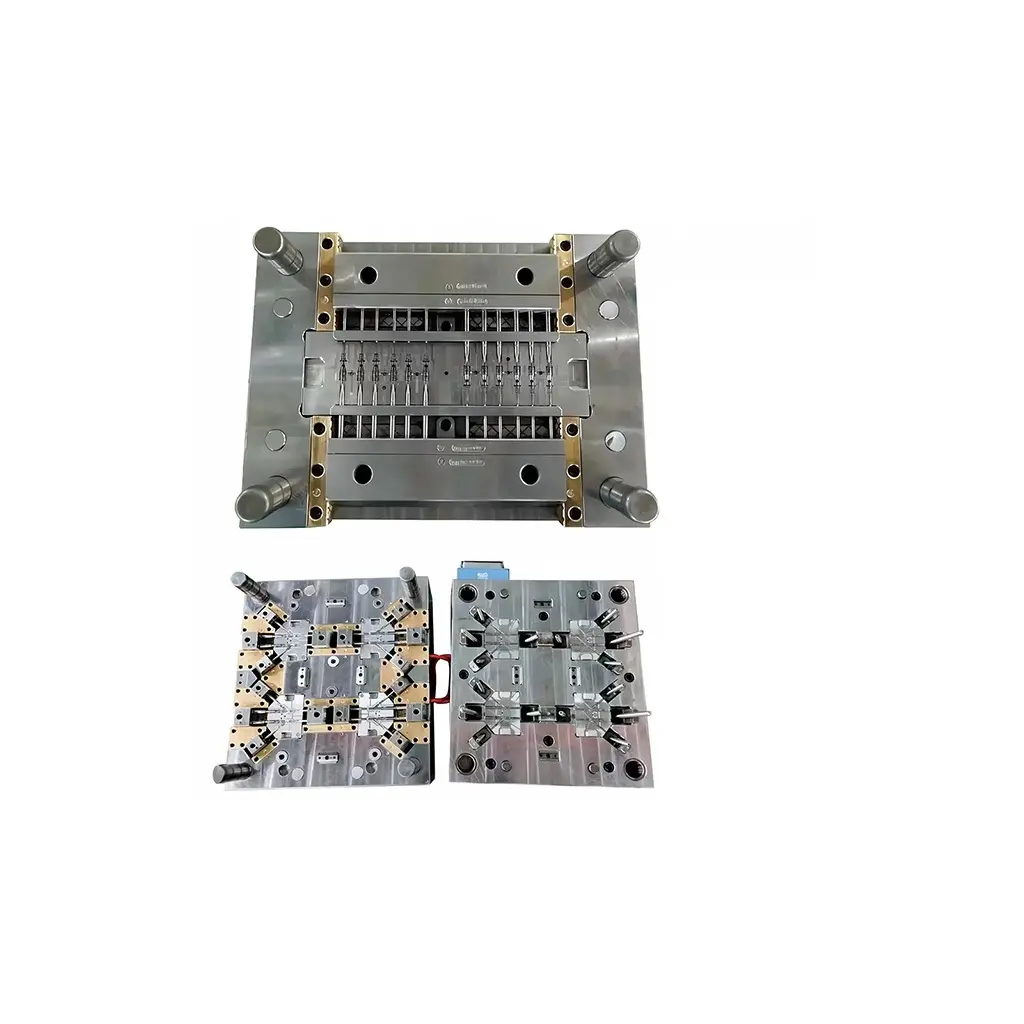

Multi-cavity injection mould for a small component

Multi-Cavity Mould for a Small Component

Manufactured multi-cavity mould structure for a small customer-specific component.

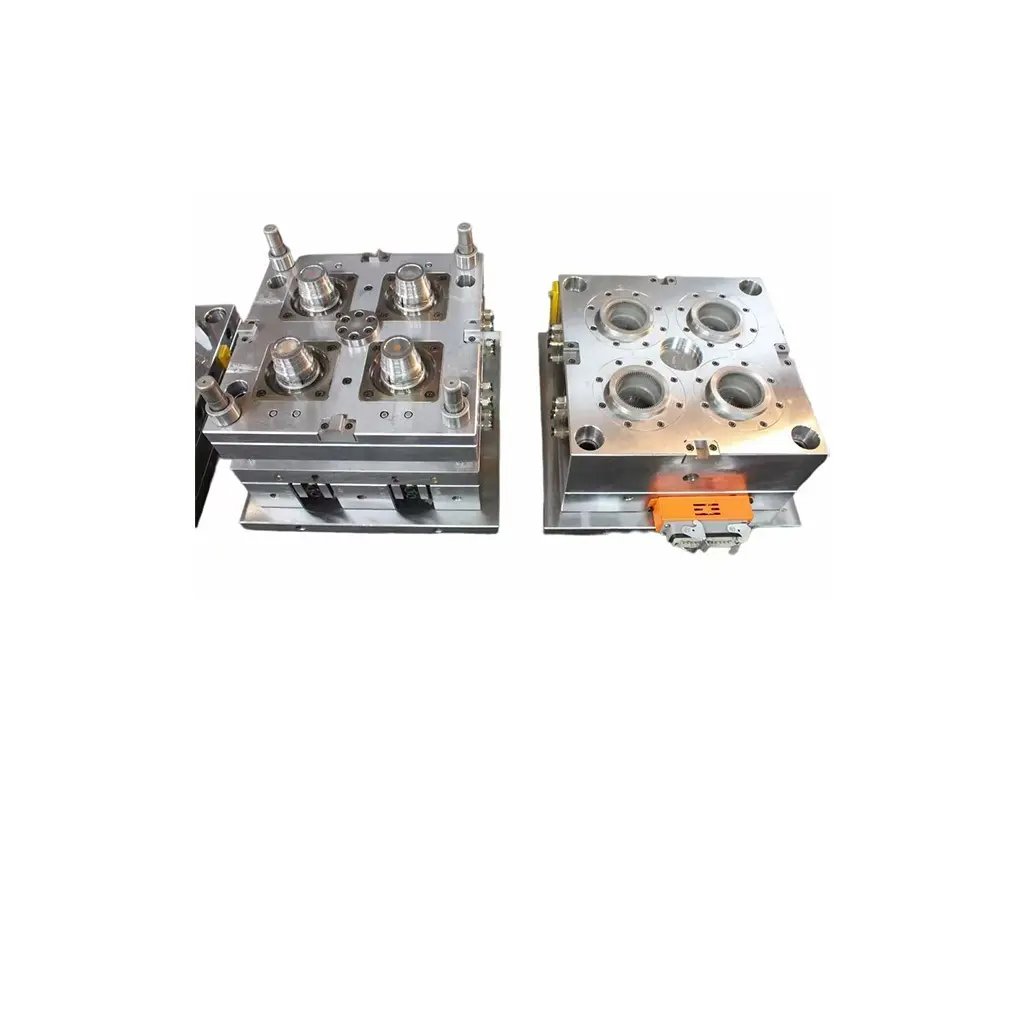

Injection mould for a deep cylindrical component

Deep-Cavity Injection Mould

Completed mould structure developed for a deep cylindrical component geometry.
